Russell Professional Pond & Pondless Products
Submersible Pump 5,100 gph SH-5100
For Ponds and Waterfalls
5,100 gph @ 5' with Optional Auto ON/OFF Float Switch
- High efficiency motor
- 5,100 gph @ 5′ head
- 2″ female threaded outlet
- 1/2 horsepower
- 37′ max head
- 115 volt, 5.5 amps
- 506 input watts
- ETL listed
- Heavy-duty motor designed for continuous duty operation
- Cast aluminum bearing housing
- Non corrosive construction
- Anti vibration bearing technology
- Dual mechanical shaft seals - Silicon carbide lower, carbon ceramic upper
- 33' heavy duty power cord
- Vortex impeller
- Stainless steel housing
- Stainless steel shaft
- Stainless steel fasteners
- 3,400 rpm motor
- Double ball bearings
- $36.30 monthly operating cost @ $0.08 per kilowatt hour
- 2 year warranty
- Use with CVA-200 Custom Cam Lock Check Valve Assembly for HydroClean Pond Skimmers and HydroChamber Pump Vault

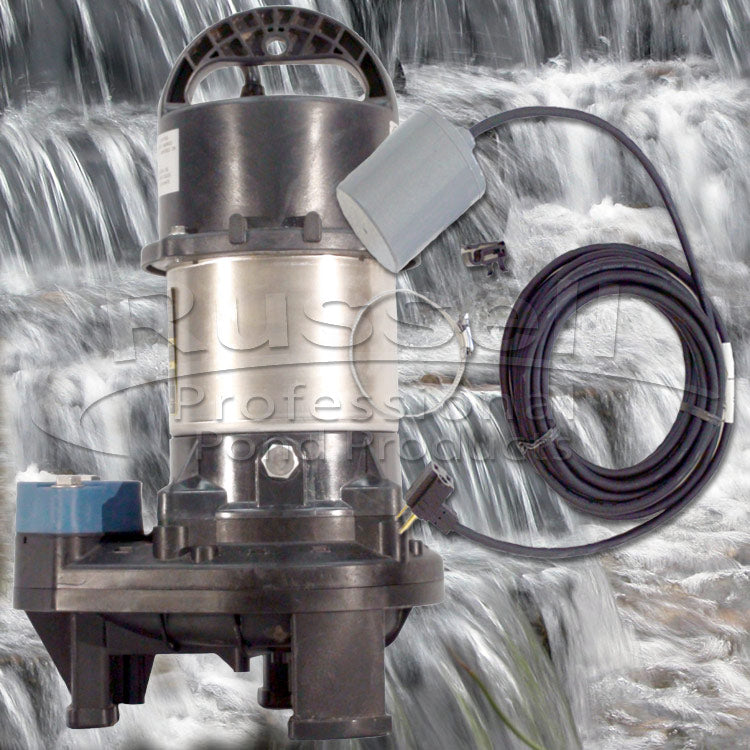

- Optional Auto ON/OFF Float Switch helps prolong pump life by preventing low water operation
SH-5100 Pond Pump Flow Rate GPH @ Head
| SH-5100 | 0' | 5' | 10' | 15' | 20' |
| GPH | 5,100 |
5,100 |
4,320 | 3,420 | 2,700 |
SH-5100 Pond Pump
Reliable and dependable 5,100 gph
Pond and Waterfall Pump

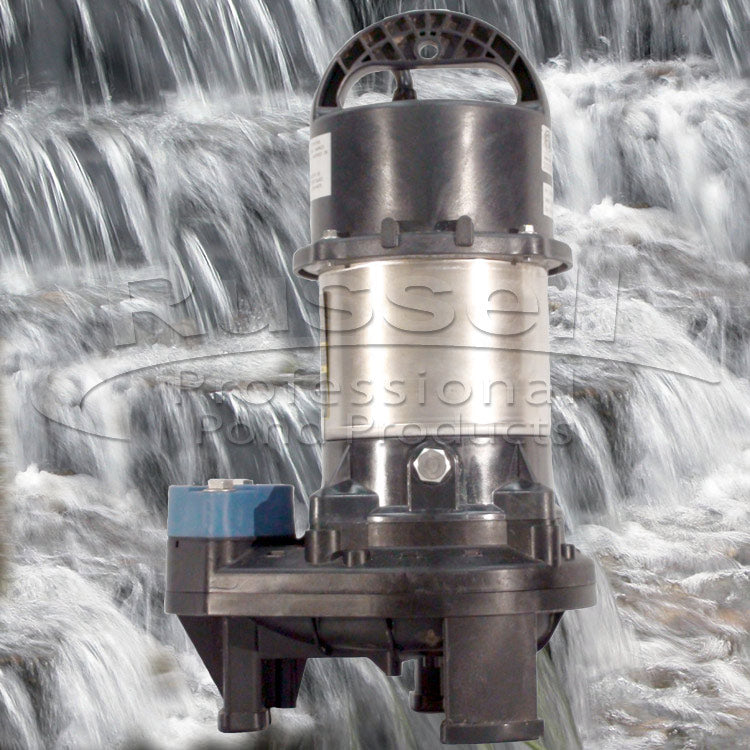

Reliable and durable 5,100 gph @ 5' pump for ponds and pondless waterfalls. Heavy duty continuous duty operation. The SH-5100 pond pump is constructed of stainless steel and corrosion resistant fiber reinforced resin. Quiet operation and large water flow makes the SH-5100 a great choice for pondless waterfalls and all types of ponds.
Electrical
- Pump must be protected by a ground fault circuit interrupter (GFCI).
- Pump must be plugged into a standard, properly grounded, three pronged outlet. Pump MUST NOT BE HARDWIRED.
- Do not cut or alter the electrical cable.
- Never move or handle the pump by pulling on the electrical cable. Make sure the electrical cable does not become excessively bent or twisted, does not rub against a structure in a way that might damage it, and does not come in contact with heated surfaces.
- Upon receipt of pump - examine the cable for damage from shipping. If damaged, contact us immediately for a replacement. DO NOT INSTALL a pump with a damaged electrical cable!
- Cutting or altering electrical cable in any way VOIDS the warranty. Installing a pump with a damaged cable VOIDS the warranty.
Operation
- Pay careful attention to the water level while the pump is operating. Dry operation may cause the pump to malfunction. Pump must always operate while fully submersed. Pump failure due to dry operation VOIDS the warranty.
SH-5100 Submersible Pond Pump Benefits
Submersible pond pumps must be rated for continuous duty operation to be suitable for ponds and waterfalls. The SH-5100 Pond Pump is rated for continuous duty operation.
The SH Series Pond and Waterfall Pumps are reliable submersible pumps for ponds and waterfalls. Each SH submersible pump is designed and built to be truly continuous operators. This provides you with the confidence to operate your pond and/or waterfall 24/7/365. The SH Series submersible pumps are constructed of Stainless Steel and corrosion resistant polyamide Fiber Reinforced Resin.
SH-5100 Submersible Pond Pump
Makes Beautiful Waterfalls
The SH-5100 waterfall pump creates beautiful waterfalls up to 30″ wide over natural stone. At 5,100 gallons per hour, the SH-5100 pump is perfect for backyard waterfalls and streams.
The SH-5100 pond pump fits inside most pond skimmers, but is ideally suited for the Piper and Pelican HydroClean™ Pond Skimmers.
The SH-5100 waterfall pump fits inside most pondless pump vaults but is ideally suited for the HydroChamber™ as part of an Ultimate Pondless System.
Use a SH-5100 pump as a replacement for failed Aquascape, Little Giant, Savio, Easy Pro, Tsurumi, Beckett, Cal Pump, and many other brands of submersible pumps.
