Koi Pond Filter - HBV-28

Highly Efficient, Easy to Clean, No Air Blower Required for Backwashing

Features:

• Koi Pond Filter Dimensions: 28″, wide x 34″  tall
• For ponds up to 10,000 gallons
• Flow rates up to 5,900 gph (98 gpm)

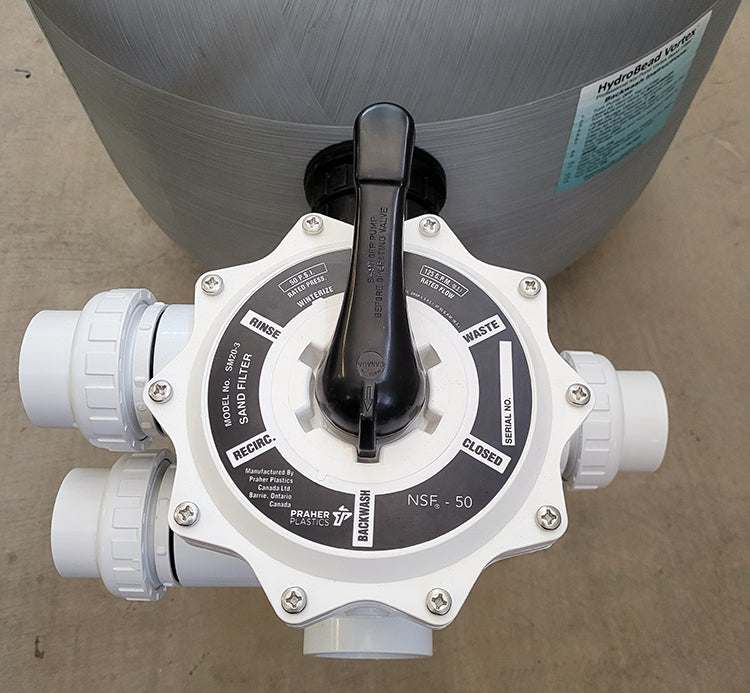

• 2″ multi-port valve
• No air blower required for backwashing
•
  Pressure gauge and air release valve
• 2” inlet vortex lateral
• 2” vertical outlet lateral
• Heavy duty spun wound fiberglass tank
• Up-flow design with internal vortex
• 2” unions on inlet, return, and waste.
• Filtration down to 100 microns
• Bio absorption down to 5 microns
• Vortex solids separator
• Settling cone for debris capture
• Vortex drain at bottom of settlement area
• Floating media above vortex settling area
• Vertical outlet/backwash lateral

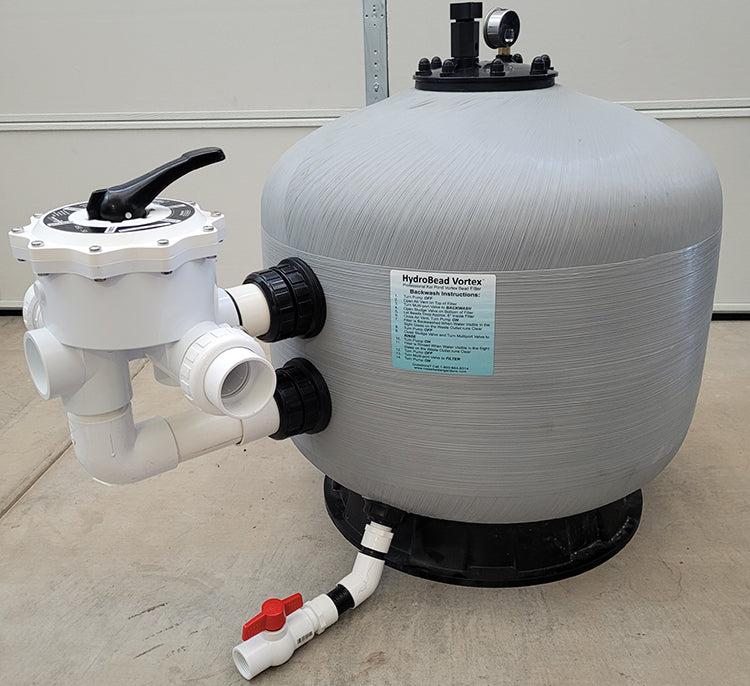

• Efficient Backwash
• 6.0 cubic feet of HydroFoam™ bead koi pond filter media
• 5,308,416 beads (@ +/- 884,736 beads per cubic foot)
• 2,713.20 Total Specific Surface Area (SSA) bead filter media
• Metabolizes up to 54,264 mg ammonia per 24 hours
• Supports 13,566 grams of fish in 10,000 gallons of water
• Stainless steel hardware
• Removable access lid

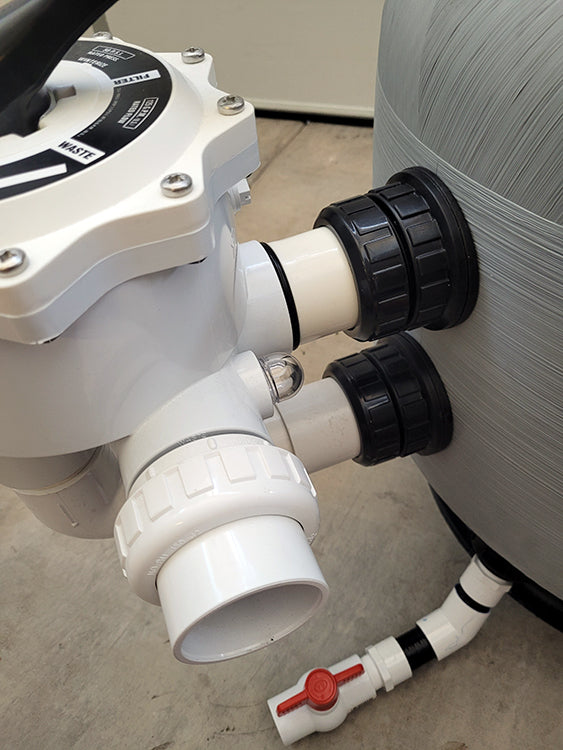

• Backwash water viewing port
• ¾” vortex drain valve with internal screen
• For best performance, use with a HydroSieve™ Pre-Filter

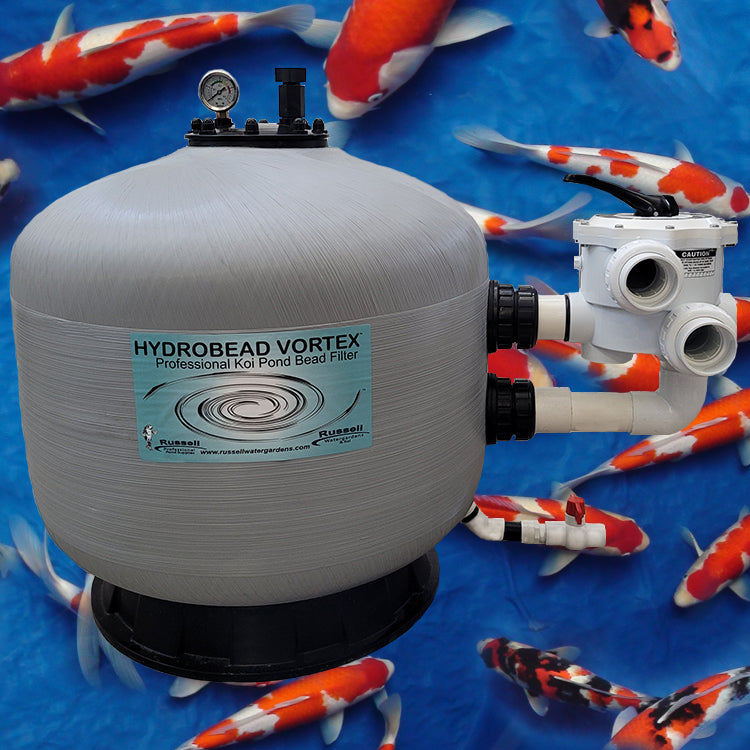

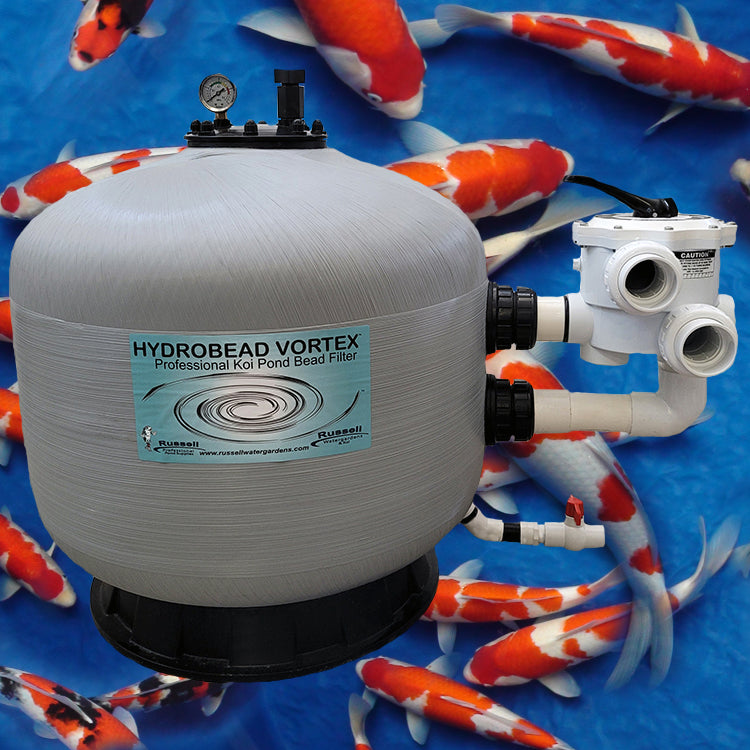

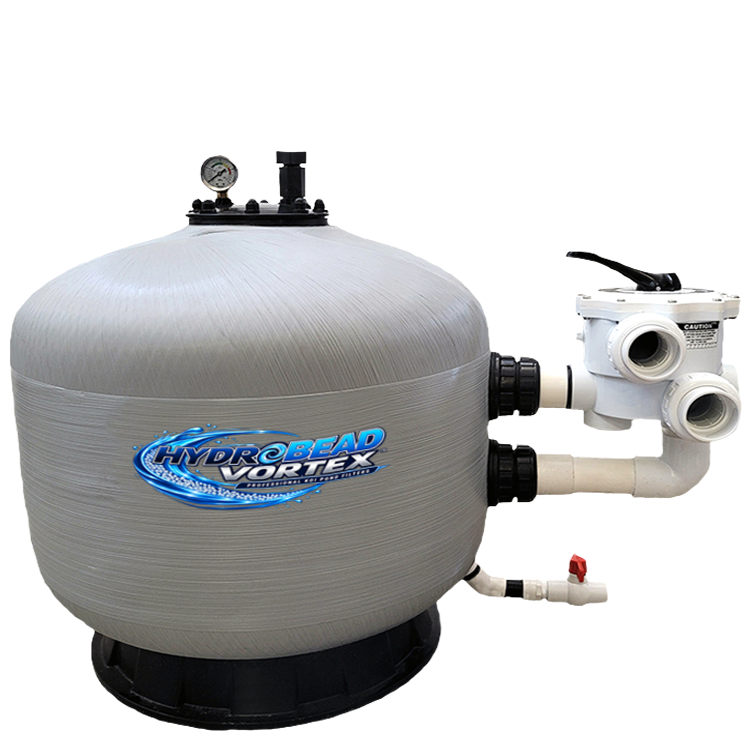

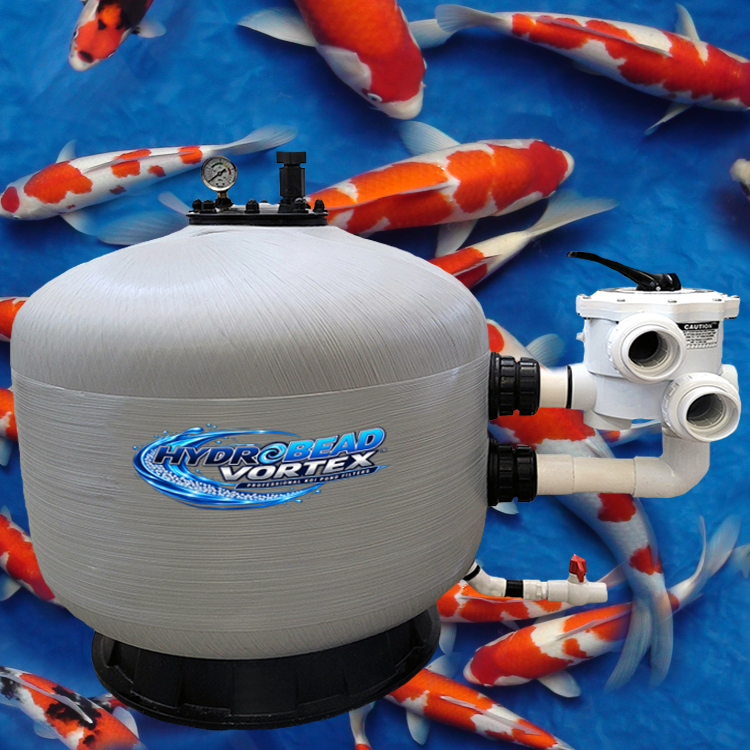

HydroBead™ Vortex HBV-28
Large Koi Pond Filter
High Surface Area Bio Filter Reaction with
Superior Water Polishing in One Unit

The HBV-28 HydroBead™ Vortex 28" koi fish pond filter is a professional koi pond bead filter that combines high SSA with superior water polishing for clean and healthy water for your koi and pond fish.

The HBV-28 large koi pond filter for koi features a vortex for heavy solids removal, a biofilter media stage for metabolizing dissolved organics, and superior water polishing. The unique bead filter design and biological filter media backwashes with less water than competing filters.

High Surface Area Bio Reaction and
Superior Water Polishing in One Unit

Long After Price has been Forgotten, Value, Quality, and Piece of Mind are Not.

Top of Page

High Surface Area Bio Reaction with Superior Water Polishing in One Unit

HBV-28 Benefits:

• Assembled in the U.S.A.
• Highly efficient koi pond filter
• Filter for up to a 10,000 gallon pond
• Flow rates up to 5,900 gph (98 gpm)
• Easy to clean
• Simple, easy backwash
• Backwashes with less water than competing filters
• No air blower required for backwashing
• Superior water polishing for sparkling water
• Heavy duty spun wound fiberglass tank
• Super lightweight Styrofoam HydroBead™ bio media
• Polishes water for maximum clarity and shine

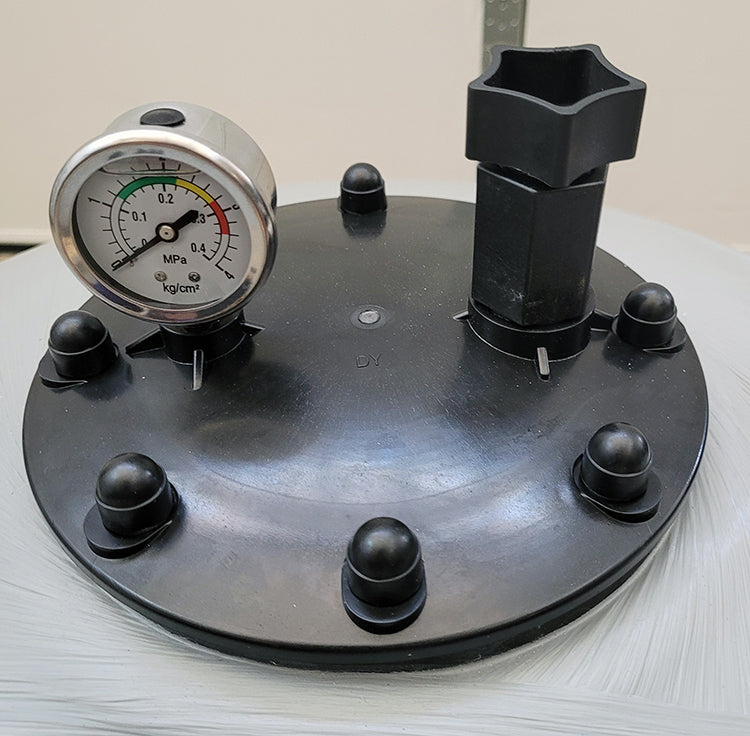

Pressure gauge and air release valve on top of the HBV-28 large koi pond filter

The vertical backwash lateral jet inside the HydroBead™ Vortex HBV-28 koi pond filter reduces backwash time which results in less water use and eliminates the backwash “dead-zones” that occur within other brands of bead filters that feature horizontal backwash laterals.

The HBV-28 large koi pond filter’s unique design eliminates the need for expensive, difficult to use, and aggravating air blowers that competing bead filters require for backwashing.

Polishes Water for Maximum Clarity and Shine:

The super lightweight Styrofoam HydroBead™ media inside this 28″ bead filter cling together under pressure to trap fine particulates down to 100 microns and polish the water during filtering. The HydroBeads™ easily separate during backwash to release the trapped particulates.

The HydroBead™ Vortex HBV-28 large koi pond filter is a professional bead filter that combines high SSA with superior water polishing for clean and healthy water for your koi and pond fish. The HBV-28 large koi pond filter features a unique design that eliminates the need for costly and difficult to use air blowers for backwashing – saving you time, aggravation, and money.

Because of the unique HBV-28 large koi pond filter design, it uses much less water during backwashing. The vertical backwash jet inside the HydroBead™ Vortex HBV-28 large koi pond filter eliminates backwash “dead-zones” that occur in other brands of bead filters that have horizontal laterals.

HBV-28 Koi Pond Filter Superior Water Polishing

The super lightweight Styrofoam HydroBead™ media inside the HBV-28 large koi pond filter cling together under pressure to trap fine particulates and polish the water during filtering. The beads easily separate during backwashing to release the trapped particulates. The HBV-28 large koi pond filter is truly in a class all it’s own.

For clean healthy pond water coupled with superior water polishing, easy and complete backwashing – without the need for an air blower – the HydroBead™ Vortex HBV-28 large koi pond filter is the perfect filter for your 10,000 koi pond.

The HBV-28 HydroBead™ Vortex filter truly is in a class all it's own. For clean healthy pond water coupled with superior water polishing, easy and complete backwashing - without the need for an air blower - there are only HydroBead™ Vortex bead filters.

Top of Page

Bead Filters That Require Air Blowers
for Backwashing Are Less Efficient
and Have a Higher Cost of Ownership
than HydroBead™ Vortex

• Their designs don't let them backwash with just water
• They use bio media that doesn't backwash with just water
• Their bio media is either heavy,  porous, or both
• Their bio media "clumps" together
• "Clumping" bio media must be broken up with high air pressure bubbles
• Air blowers add to the cost of the filter
• Air blowers require additional steps for backwashing
• Additional steps mean more time to backwash
• Air blowers require additional plumbing
• Additional plumbing increases installation time
• Air blowers fail over time and must be replaced
• Replacing air blowers increases the cost of ownership
• Air blowers are loud
• These filters are an eyesore in the landscape
• These filters ruin the natural look of the pond

There are many brands of koi pond bead filters that require air blowers for backwashing. The air blower sticks out like a sore thumb on the filter. These air blowers are very loud - more than triple that of a hair dryer.

Do YOU want to have to wear ear plugs just to backwash your filter?
 We don't think so.

Also, do you want to look at a filter like any one of these near your beautiful koi pond?  Many people build a shed to hide these filters - that also adds to the cost of the filter! Building a filter shed also increases your installation time - and requires additional pipe.  Yup, you guessed it! That significantly adds to the cost of the filter too! If you don't build a filter shed - do you want to scare your fish with a loud air blower?

If you don't build a filter shed you'll also make every dog in your neighborhood bark every time you backwash your filter. Your neighbors won't be too happy with you.

The Question to Ask is: Why is an Air Blower Required for Backwashing?

The answers we found after testing and researching these types of bead filters is simple:

•
  They have flaws in their overall design
• They have design flaws in their water flow
• They have design flaws in their water direction
• They have design flaws in their bio media
• The bio media is heavy
• The bio media is porous
• The bio media clogs
• The bio media clumps together
• The bio media is hard

Now, not every filter has all the above, but if it requires an air blower for backwashing, you can be sure that it has at least one or more of these problems.

•
  Down flow water direction during filter mode traps debris on top of  floating bio media - requiring an air blower to force high pressure air bubbles up through the media to lift the trapped debris to purge it from the filter
•
  Heavy - or sinking bio media  such as glass beads or clay beads require downward water flow during filter mode that results in the same backwashing requirements as floating bio media in a down-flow design.
•
  Porous bio media requires high pressure air bubbles to dislodge debris trapped within the bio media
• Ring type and bio-ball type media clump together requiring high pressure air bubbles to break them apart.

Compare With The Benefits You Get With HydroBead™ Vortex

HydroBead™ Vortex* filters feature a unique design that eliminates the need for costly and difficult to use air blowers for backwashing - saving you time, aggravation, and money.  Because of the HydroBead™ Vortex filter design, it not only doesn't require an air blower, it uses much less water during back flushes. The vertical backwash jet inside HydroBead™ Vortex bead filters eliminates backwash "dead-zones" that occur in other brands with horizontal backwash laterals.

The super lightweight Styrofoam HydroBead™ media inside the bead filter cling together under pressure to trap fine particulates and polish the water during filtering, and easily separate during backwashing to release the trapped particulates.

For clean healthy pond water coupled with superior water polishing, easy and complete backwashing - without the need for an air blower - there are only HydroBead™ Vortex bead filter.

* This video shows our older version with a clear lid, the new lids are solid.  The old lids tended to crack over time, so we replaced the lid with a much stronger and heavy duty lid.
