Russell Professional Pond Products

Dolphin Series Ultimate Large Pondless Waterfall Kit

Loading reviews...
$2,129.99
  • RW-4950 Pump with Manual Backwash
RW-4950 Pump with Manual Backwash RW-4950 Pump with HydroFlush Backwash System RW-5950 Pump with Manual Backwash RW-5950 Pump with HydroFlush Backwash System C-4620 External Pump with Manual Backwash C-4620 External Pump with HydroFlush Backwash System

Russell Professional Pond Products

Dolphin Series Ultimate Large Pondless Waterfall Kit

Loading reviews...
$2,129.99
  • Dolphin Series Ultimate Large Pondless Waterfall KitDolphin Series
    Large Pondless Waterfall Kit

    25″ wide waterfalls cascading approximately 26″ down that disappear through the HydroSieve™ pre-filter into the HydroChamber™ underground pump chamber and water storage tank.

    The Dolphin Series Large pondless waterfall kit comes complete with Pre and Post filtration for the absolute cleanest pondless waterfall possible! Providing you with the MOST design options and creative freedom.

    The EASIEST to CLEAN
    large pondless waterfall system stays
    CLEAN and FRESH and provides you
    MORE VALUE for your money

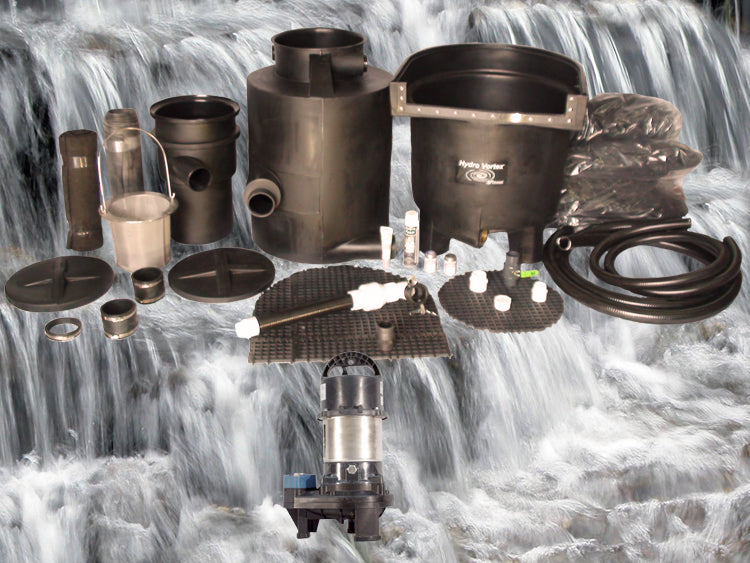

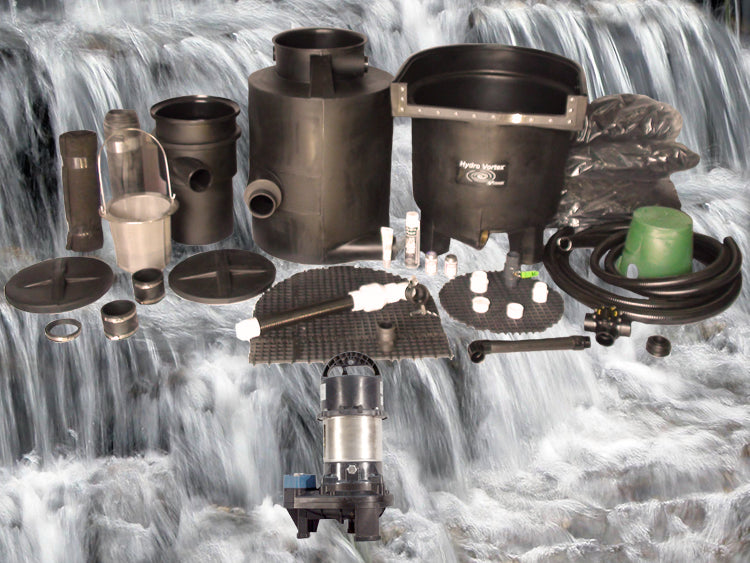

    Dolphin Series Ultimate Large Pondless Waterfall Kit Includes:

    • Dolphin Hydro Vortex patented easy to clean backwashable waterfall filter with 25″ wide waterfalls
    • Filter cleanout kit with 10′ of heavy duty black 1½” flexible PVC pipe, and 1½” stainless steel lever shut-off valve
    • Stainless steel hardware
    • 3.66 cubic feet of Hydro FilterSilk™ easy to clean filtration media
    • HydroSieve-PF™ pre-filter with stainless steel filter basket
    • HydroChamber™ all-in-one pump chamber and water storage tank
    • 10′ of Heavy duty black 2” flexible PVC pipe
    • 3′ x 5′ 45 mil EPDM rubber liner (for waterfalls)
    • 15 sq. ft. 15 ml geotextile underlayment (for waterfall liner)
    • 2” Cam-lock check valve assembly
    • PVC glue and primer
    • Tube of 100% silicone sealant
    • 16 oz. can of HydroFoam™ waterfall foam sealant
    • All required PVC fittings
    • Choice of Manual or HydroFlush™ Backwash – Patented Self-Cleaning Backwash System
    • Choice of pumps:

    RW-4950 Professional Waterfall PumpRW-4950
    Direct Drive Submersible Pump
    4,950 gph @ 5′, 6.0 amps, 720 watts
    $41.47 Monthly Operating Cost ($.08/Kw)
    $497.64 Annual Operation Cost (24/7)
    2 Year Warranty

    RW-5950 Professional Waterfall PumpRW-5950
    Direct Drive Submersible Pump
    5,950 gph @ 5′, 8.5 amps, 1,020 watts
    $58.75 Monthly Operating Cost ($.08/Kw)
    $705.00 Annual Operation Cost (24/7)
    2 Year Warranty

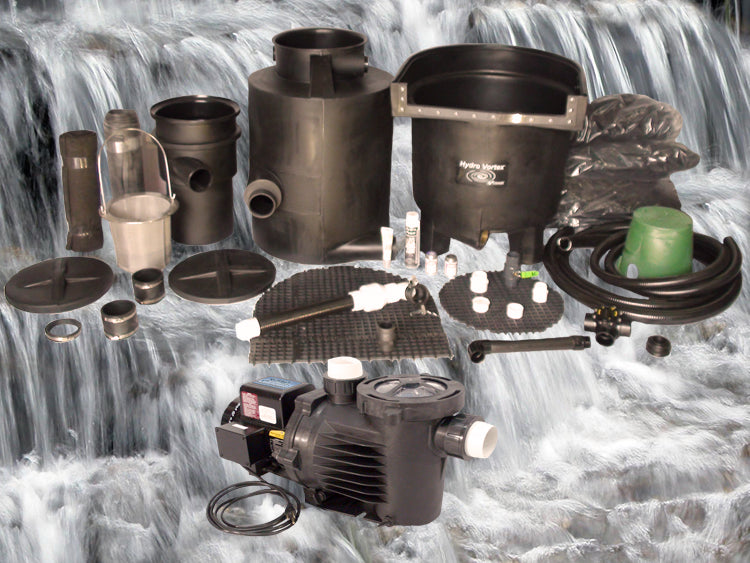

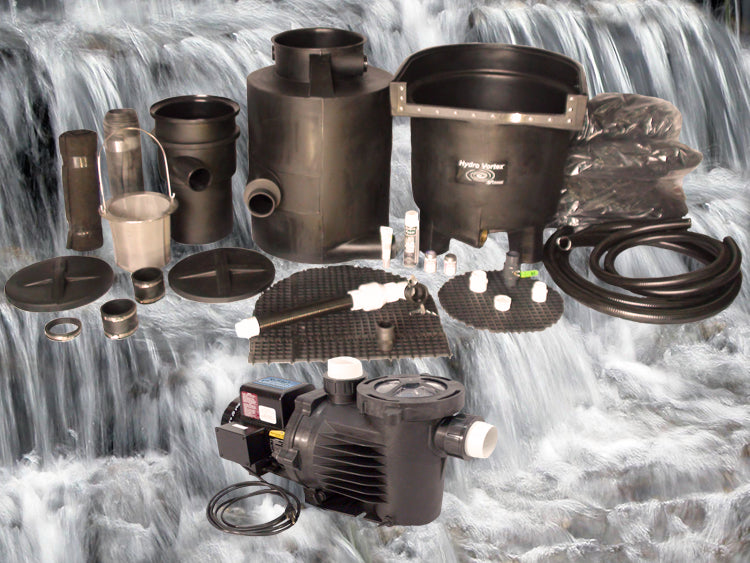

    C-4620-2B External Pond and Waterfall PumpC-4620-2B
    Self Priming External Pump
    4,620 gph @ 5′, 2.52 amps, 290 watts
    $16.70 Monthly Operating Cost ($.08/Kw)
    $200.40 Annual Operation Cost (24/7)
    3 Year Warranty

    No Gravel Pits. No Hassles. No Headaches. Super Easy to Clean!

    More Large Pondless Waterfall Kit Options
    More Large Pondless Waterfall Design Options
    Easy to Clean Large Pondless Waterfalls

    Dolphin Series Ultimate Large Pondless Waterfall Kits come complete with Pre and Post filtration for the absolute cleanest pondless waterfall possible! Providing you with the MOST design options and creative freedom.

    HydroSieve and HydroChamber






    The HydroChamber™ and HydroSieve are modular with remote installation capabilities. You have complete creative design control of where you want your pondless water storage and your pre-filter.

    If you choose, they can be at the base of your pondless waterfall. The most creative place to put your water storage and pre-filter is completely away from your pondless waterfalls.


    Conventional pondless waterfall kits use a gravel filled basin for pre-filtering debris from the water - but how do you clean the gravel?

    Many conventional pondless waterfall kits don't include a biological filter for processing dissolved organics from the water - so guess what .... they grow excessive algae!

    Some pondless waterfall kits do include a biological filter - but it isn't backwashable. Once again -  how do you clean it?  By hand!

    The HydroChamber™, HydroSieve™-PF pondless pre-filter, and Dolphin Hydro Vortex™ backwashable waterfall filter work together to provide you with the “Ultimate”  pondless waterfall kit. Ultimate pondless waterfall kits are EASY TO CLEAN!  A clean pondless waterfall is simply more beautiful.

    Why is a Dolphin Hydro Vortex™ Backwashable Waterfall Filter Included
    With Each Ultimate Large Pondless Waterfall Kit?

    • Dissolved organics to processed away with a biological filter will feed algae in pondless waterfallsDust, pollen, bird waste, frog waste, nitrogen, acid rain, airborne pollutants, and phosphates not processed out of pondless waterfalls feed algae
    • Just like ponds, the water in pondless water features trap all sorts of wind-blown, rain-dropped, or irrigated dissolved organic debris
    • Waterfall weirs or waterfall starters in conventional pondless waterfall kits DO NOT process dissolved organics out of the water
    • Dissolved organics not processed by a backwashable waterfall filter simply recirculate through the pondless water feature .... but what happens to these dissolved organics?
    • Unprocessed dissolved organics feed algae!

    The Dolphin Hydro Vortex™ waterfall filter will process dissolved organics out of your pondless waterfall . It will also drastically improve water clarity, quality, and remove odors. The Dolphin Hydro Vortex™ filter is also easy to clean. You have your choice of manual backwash, or HydroFlush with your Ultimate medium pondless waterfall kit.

    Remember:
     A pondless waterfall will become only as beautiful as it can be maintained.

    Dolphin Series Ultimate Large Pondless Waterfall Kits are Easy to Clean, Modular and Flexible

    HydroSieve and HydroChamber can be installed away from the pondless waterfall

    Dolphin Series large pondless waterfall kits all come with a HydroSieve™ pre-filter and a HydroChamber™ "all-in-one" pump vault and water storage tank. These two units replace the large gravel basins of conventional pondless waterfall kits. The HydroSieve™ traps debris for easy removal, and the HydroChamber™ replaces basin underlayment, basin liner, a slotted pump vault, two water matrix blocks, and hundreds of pounds of rock and gravel.

    As you can see from this photo, both units are modular. This lets you install them together ..... or apart from each other. You can have them at the base of your medium pondless waterfalls, or moved away. They simply connect to standard 4" PVC or ABS piping with rubber couplers. No other medium pondless waterfall kit offers this kind of flexibility.

    Unlimited Large Pondless Waterfall Creative Design Options

    Ultimate large pondless waterfall kits are designed to give the designer more installation options, and for the end-user to be able to easily clean and maintain themselves. Ultimate pondless waterfall kits give installers more creative design options: Design the waterfalls in one section of the landscape, remotely install the HydroSieve™-PF pre-filter in another location, and remotely install the HydroChamber™ water storage tank in yet another location - with any type of landscaping or hardscaping in between.


    Ultimate Large Pondless Waterfalls are
    Easy to Clean!

    Ultimate pondless waterfall kits are easy to clean - gravel basin pit pondless waterfall are not
    Each and every Ultimate large pondless waterfall kit comes with a HydroSieve™ pre-filter that captures debris. Rock and gravel in conventional pondless waterfall kits is NOT an easy to clean pre-filter!

    Before buying any pondless waterfall kit
    you should ALWAYS ask ....
    "How do I clean it?

    After all, it's your pondless waterfall and you'll have to clean it yourself ... or pay someone a lot of money to clean it for you!  You'll need to add the cost of cleaning to the price of difficult to clean low cost gravel pit/matrix pondless waterfall kits. Our Ultimate pondless waterfall kits are easy to clean and provide you a much better value for your money.

    Ultimate Pondless Waterfall Kits Save You Money
    Over Cheap Price Conventional Pondless Waterfall Kits!
    You Get What You Pay For - We're Just Say'inUltimate pondless waterfall kits are easy to clean - conventional pondless waterfall kits are not

    Ultimate easy to clean pondless waterfall kits are easy to clean - these conventional style pondless waterfall kits are not

    Conventional pondless waterfall basins consist of a slotted pump vault, water matrix blocks, liner, underlayment, rock, and gravel.

    None of these conventional pondless waterfall kits come with a pre filter to trap debris for easy removal. They don't come with a backwashable waterfall filter to process dissolved organics. They don't come with an "All-in-One" pump chamber that is both a pump vault and water storage tank.

    The HydroSieve™ and HydroChamber™ included with every Ultimate pondless water kit replaces all the above listed items in a much smaller space. A smaller pondless basin requires less labor, saving you installation time and money.

    The HydroChamber is a better value





















     The HydroChamber is a BETTER VALUE!

    With the "all-in-one" pump vault and water storage tank configuration of the HydroChamber™ included with every Ultimate medium pondless waterfall kit, the pondless waterfall excavation can be significantly smaller than conventional pondless waterfall water storage basins.  This saves you money in labor costs!  Why dig a hole bigger than you need to?

    What You Get With Gravel Pit Based Pondless Waterfall Kits

    • A large excavation filled with underlayment, rubber liner, a slotted pump vault, water matrix blocks, and hundreds of pounds of rock and gravel for the water storage basin
    • Debris such as leaves, blossoms, weed seeds, tree seeds and other organic debris will get trapped into the rock and gravel basin
    • The force of the waterfall will push that debris deeper and deeper into the gravel basin
    • Gravel basin based pondless waterfall kits grow excessive algaeThe debris will break down and decay
    • Decayed organic debris turns into sludge
    • Sludge turns the water brown
    • Sludge smells like rotten eggs
    • Dust, pollen, bird waste, phosphorus and other dissolved organics will remain in the water
    • Dissolved organics and sludge WILL FEED ALGAE
    • Potentially unhealthy water conditions for children, pets, and wildlife
    • Gravel basin based pondless waterfalls become an algae eyesore and a maintenance nightmare

    Just say NO to conventional pondless waterfall kits!

    Buyer beware!  You get what you pay for.
    There is a reason why every single gravel basin based
    pondless waterfall kit manufacturer
    DOES NOT provide you with "how to clean it" information.
    Their pondless waterfall gravel basins simply can't be cleaned!

    Ultimate Pondless Waterfall Kits are
    Easy to Install & Easy to Clean
    For A Clean and Fresh Pondless Waterfall
    That is Beautiful and a Joy to Own
