Easy-to-Clean Biological Filtration for Ponds & Pondless Waterfalls

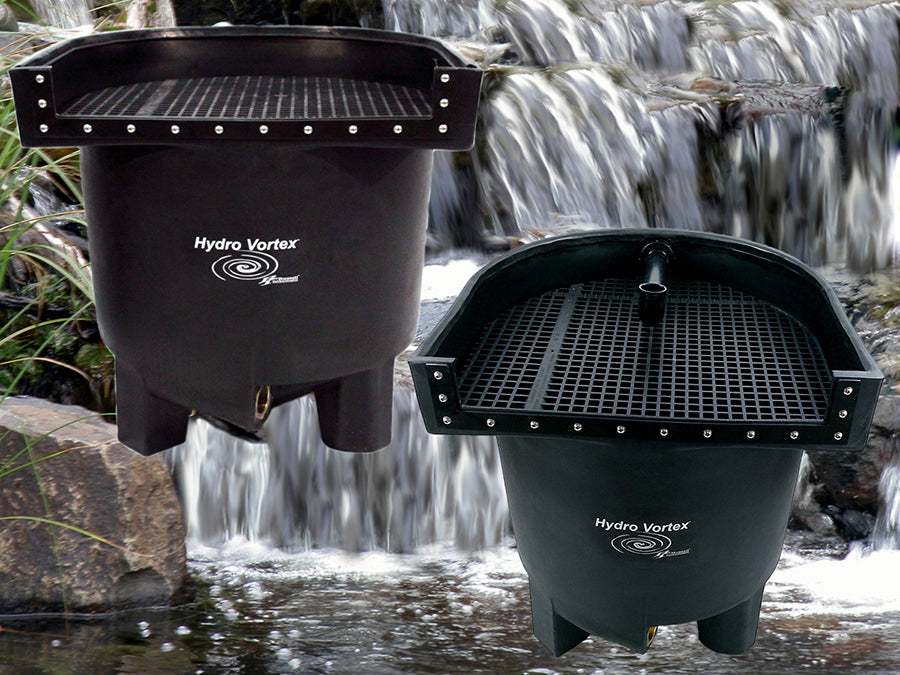

The Dolphin Hydro Vortex™ combines a 25" waterfall opening with vortex separation, biological filtration and fine water polishing in one compact, easy-to-clean waterfall filter.
Unlike conventional waterfall filters that may require removing and cleaning filter pads, the patented Hydro Vortex™ design can be backwashed without removing the Hydro FilterSilk™ media. That means less time cleaning your filter and more time enjoying your pond or pondless waterfall.
Proudly Made in the USA
Why Choose the Dolphin Hydro Vortex™?
Easy to clean — can be cleaned in as little as 2 minutes
No filter pads to remove and clean
No additional media required — includes 7.40 cu. ft. of Hydro FilterSilk™
Vortex solids separation helps settle heavier debris before the biological media
Fine water polishing with Hydro FilterSilk™ media
Biological filtration supports cleaner, healthier water
Built-in settling cone and bottom drain make captured debris easy to remove
25" waterfall opening creates the waterfall while concealing the filter in the landscape
Drain kit included
Heavy-duty rotational-molded HDPE construction
316 stainless steel liner-flange hardware
Can be installed in multiples for wider waterfalls, greater flow and additional filtration
Dolphin Hydro Vortex™ Specifications
Pond Capacity: Up to 8,000 gallons Maximum Flow: 8,100 GPH (135 GPM) Waterfall Opening: 25" wide Dimensions:32½" H × 31" W × 30¼" D Filter Media: 7.40 cu. ft. Hydro FilterSilk™ Total Specific Surface Area: 2,708 sq. ft. Ammonia Metabolization: Up to 54,160 mg per 24 hours Supported Fish Weight: Up to 2,275 grams in 8,000 gallons Inlet: Two 2" female threaded inlet Drain: One 1½" female threaded drain outlet Construction: Heavy-duty rotational-molded HDPE Hardware: 316 stainless steel liner-flange hardware
Three Stages of Filtration in One Waterfall Filter
1. Vortex Separation Incoming water enters the lower vortex chamber, where heavier debris can settle into the cone-shaped bottom for removal through the drain.
2. Biological Filtration Water then passes upward through the Hydro FilterSilk™ media, providing a large surface area for beneficial bacteria.
3. Water Polishing The Hydro FilterSilk™ media also captures fine suspended particles to help produce cleaner, clearer water before it returns to the pond or stream through the waterfall opening.

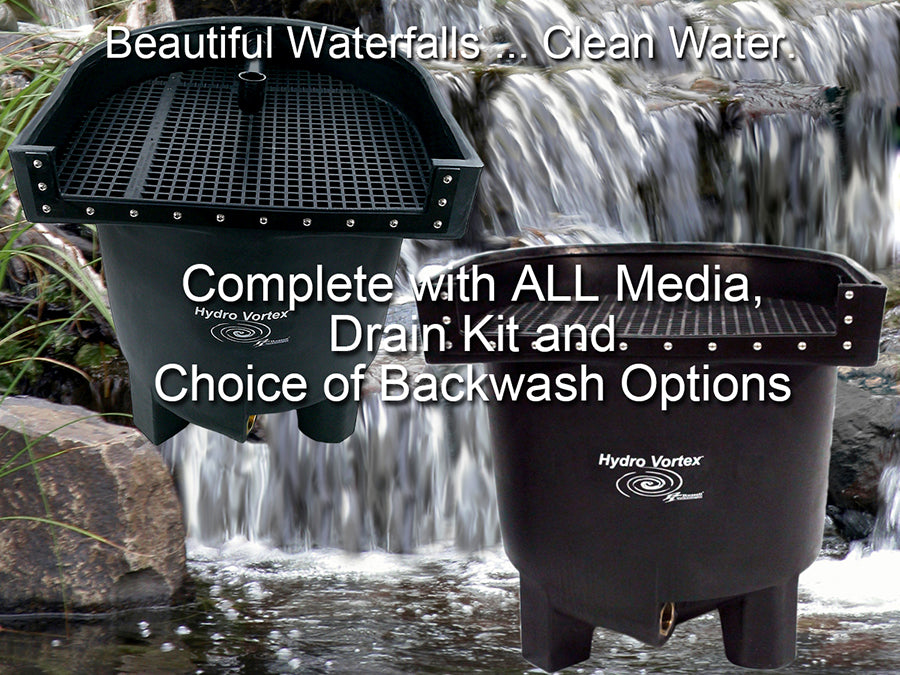

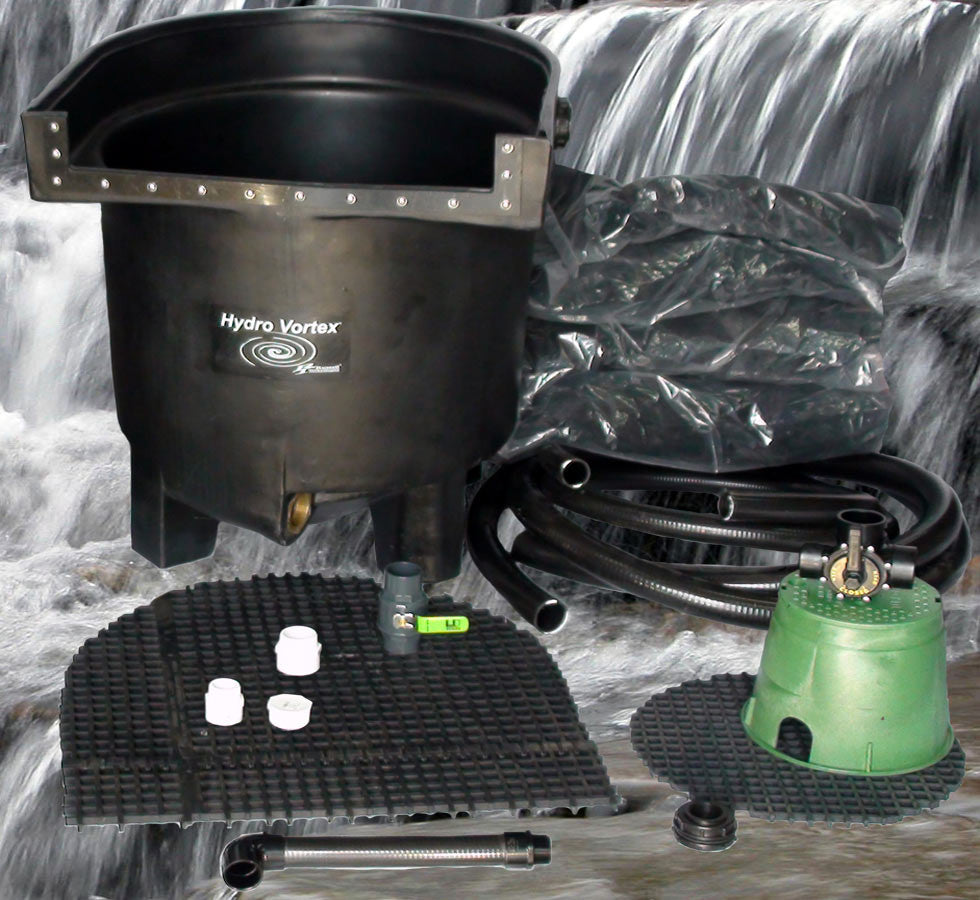

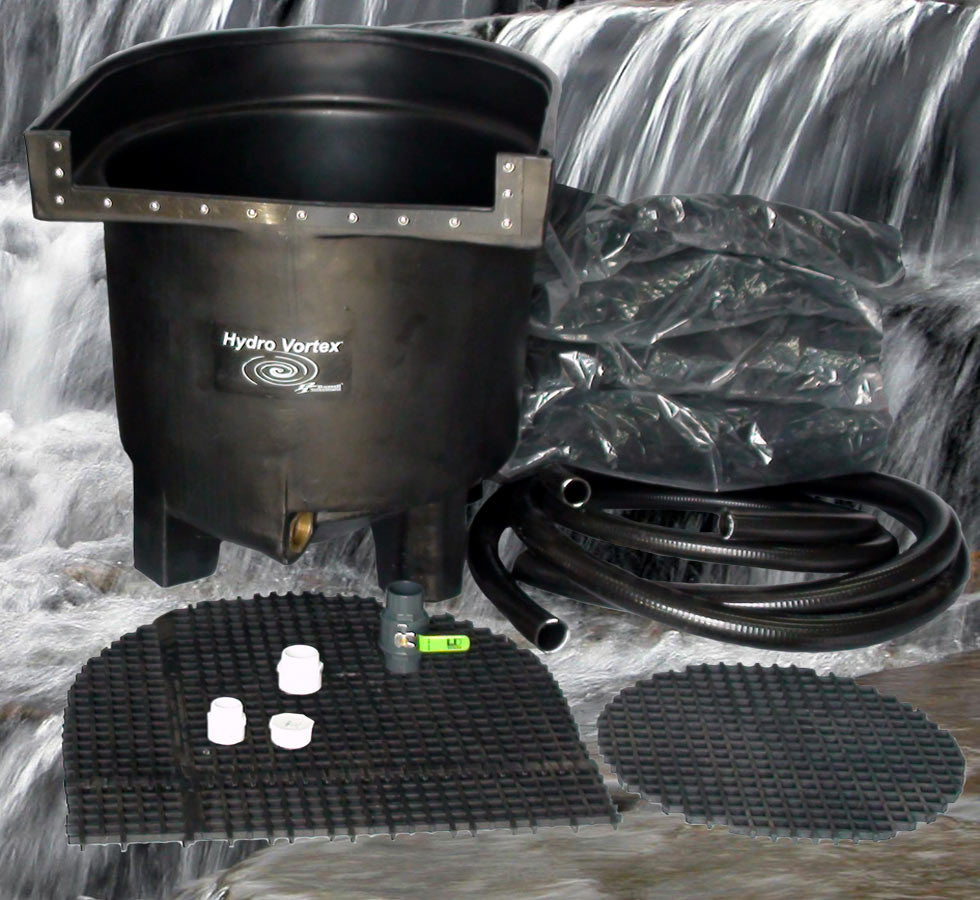

Everything You Need Is Included
The Dolphin Hydro Vortex™ includes:
7.40 cu. ft. Hydro FilterSilk™ filter media
Lower diffuser grate
Upper diffuser grate
Liner gasket flange
316 stainless steel flange hardware
10' of 1½" heavy-duty flexible PVC drain pipe
1½" drain valve
One 1½" PVC male pipe adapter
One 2" PVC male pipe adapter
One 2" PVC male plug (for unused inlet)
Fish-safe 100% silicone sealant
No additional filter media is required.
Easy Backwashing — No Disassembly Required
The Hydro Vortex™ is designed so routine cleaning does not require taking the filter apart or removing the biological media. Captured debris can be flushed from the bottom of the settling cone, while the Hydro FilterSilk™ media can be backwashed inside the filter.
No blower or separate air pump is required for backwashing.
Designed to Disappear Into the Landscape
The liner attaches directly to the face of the Hydro Vortex™, allowing rocks and waterfall boulders to be positioned around the waterfall opening. Once landscaped, the filter becomes virtually invisible — leaving the waterfall as the focal point.
Most waterfall filters can make a beautiful waterfall. The difference becomes apparent when it's time to maintain them.
The Dolphin Hydro Vortex™ 25" Waterfall Filter provides biological filtration and fine water polishing while making routine cleaning remarkably simple.
Easy to Clean • No Filter Pads • No Routine Media Replacement • Completely Backwashable • Made in the USA
Spend More Time Enjoying Your Water Feature
Routine maintenance shouldn't mean pulling apart your waterfall filter.
The Dolphin Hydro Vortex™ can be cleaned in as little as 2 minutes without removing the Hydro FilterSilk™ bio-media.
Its settling cone and bottom drain allow accumulated material to be flushed from the filter rather than requiring you to remove dirty filter pads and media bags by hand.
With the optional HydroFlush™ Backwash System, cleaning is as simple as turning two valves.
No filter disassembly. No dirty filter pads to remove. No replacement filter pads to buy.
Completely Backwashable
Water enters the Hydro Vortex™ in a way that creates rotational flow inside the filter. Heavier material can settle toward the bottom settling cone while water continues upward through the Hydro FilterSilk™ bio-media.
During cleaning, accumulated material is discharged through the filter's bottom drain.
Every Dolphin includes the drain components needed for manual cleaning. For even easier maintenance, the optional HydroFlush™ system uses the water feature's existing pump to reverse water flow through the filter.
No separate blower or air pump is required for backwashing.
Unlike conventional filter pads that must be removed for thorough cleaning and eventually replaced, Hydro FilterSilk™ remains inside the filter during routine backwashing.
Its highly open structure provides both biological filtration and fine water polishing while allowing water and loosened debris to move through the media during cleaning.
The result is simple:
Install the media once. Backwash the filter when needed.
Cleaner Water Through Two Types of Filtration
The Marlin isn't simply a waterfall box.
It combines two important filtration functions:
Biological filtration provides surface area for beneficial bacteria that help process dissolved waste.
Fine water polishing captures smaller suspended particles that have already passed through the pond skimmer or pre-filter.
Pondless doesn’t mean debris-free. Even without fish, dust, pollen and fine organic particles continually enter the water. In a HydroPure™ pondless system, the HydroSieve™ pre-filter captures larger debris before the pump, while the Hydro Vortex™ provides biological filtration and fine water polishing for cleaner, clearer recirculating water.
Designed to Disappear Into the Landscape
The filter shouldn't be the first thing people notice.
The pond or pondless liner attaches directly to the face of the Dolphin Hydro Vortex™, allowing waterfall boulders, cobblestones and landscaping to surround the 25" waterfall opening.
Once installed, the filter virtually disappears.
You see the waterfall—not the filter.
Easy to Install
The Dolphin was designed with both professional installers and homeowners in mind.
The liner attaches directly to the filter face, the drain system is included, Hydro FilterSilk™ media is included, and routine installation doesn't require specialized equipment.
That means fewer additional components to purchase and a straightforward installation for DIY pond and pondless waterfall projects.
Lower Cost of Ownership
Purchase price is only part of what a waterfall filter costs to own.
The Dolphin is designed around long-lasting components and simple routine maintenance:
No replacement filter pads. No routine biological media replacement. No blower required for backwashing. Simple routine maintenance you can perform yourself.
Because the filter can be routinely backwashed, accumulated material can be removed when needed instead of being allowed to build up until a more involved cleaning becomes necessary.
One Filter. Several Ways to Build.
The Dolphin Hydro Vortex™ provides biological filtration and fine water polishing for several styles of water features.
Easy to Own Is the Real Benefit
A waterfall filter shouldn't just work well the day it's installed. It should remain practical to maintain for years afterward.
The Dolphin Hydro Vortex™ was designed to make routine maintenance simple, so caring for your water feature doesn't become a project of its own.
Spend less time maintaining your water feature and more time enjoying it.
Before You Buy a Waterfall Filter, Ask One Question
How Do I Clean It?
Most waterfall filters can create a beautiful waterfall. The important differences become apparent when it's time for routine maintenance.
Conventional pad-and-media waterfall filters typically rely on filter pads and bags or nets of biological media that must be removed from the filter for thorough cleaning.
The Hydro Vortex™ was designed differently. Its settling chamber, bottom drain and highly open Hydro FilterSilk™ media allow accumulated material to be flushed from the filter without removing the media.
One requires removing the filter media for thorough cleaning. The other was designed to be backwashed with the media in place.
A Filter Works Better When Water Can Flow Through It
Every filter collects material. That's its job.
Even after water passes through a pond skimmer or pre-filter, smaller suspended particles and organic material can continue into the waterfall filter. Over time, that material accumulates within the filtration media.
As filter pads and debris-loaded media become clogged, water can begin following the easiest path through or around the media rather than flowing evenly through the entire filtration area.
That's why routine filter maintenance matters.
The Hydro Vortex™ was designed to make removing accumulated material a simple part of routine maintenance instead of waiting until the filter requires a more involved cleaning.
Two Different Approaches to Waterfall Filtration
Conventional pad-and-media waterfall filters typically direct water through layers of filter pads and biological media. As suspended material is captured, it accumulates within that media until the filter is cleaned.
The Hydro Vortex™ takes a different approach.
Water enters the lower chamber and creates a rotational flow. Heavier material can settle toward the bottom of the filter while water continues upward through the highly open Hydro FilterSilk™ media.
When it's time to clean the filter, accumulated material can be discharged through the bottom drain rather than requiring the FilterSilk™ to be removed.
With the optional HydroFlush™ Backwash System, the water feature's existing pump reverses the flow through the filter to help release accumulated material from the FilterSilk™ and flush it from the system.
The filtration media stays inside the Hydro Vortex™ during routine cleaning.
Filter Pads vs. Hydro FilterSilk™
The way filtration media is designed affects both how it filters water and how it must be cleaned.
Conventional waterfall filters commonly use dense filter pads to capture suspended particles. As material becomes embedded within the pads, thorough cleaning typically requires removing them from the filter and rinsing them separately.
Hydro FilterSilk™ was designed differently.
Its highly open HDPE netting provides a large surface area for beneficial bacteria while allowing water to move freely through the media.
With more than 90% open space, Hydro FilterSilk™ allows loosened material and backwash water to move through the media during cleaning.
That means the FilterSilk™ can remain inside the Hydro Vortex™ during routine backwashing.
Conventional Filter Pads: Remove • Rinse • Reinstall • Eventually Replace Hydro FilterSilk™: Leave in Place • Backwash • No Routine Replacement
Media Bags vs. Hydro FilterSilk™
Filter pads aren't the only media that may need to be removed from a conventional waterfall filter.
Many conventional designs also use bags or nets filled with lava rock, plastic media or other biological filtration material. These provide surface area for beneficial bacteria, but when fine organic material accumulates within and around the media, thorough cleaning commonly means lifting the bags out of the filter and rinsing them separately.
Once saturated with water and accumulated material, those media bags can also become heavy and messy to handle.
Hydro FilterSilk™ eliminates the need for separate bags of biological media.
The FilterSilk™ fills the filtration chamber between the lower and upper grates, providing both biological filtration and fine water polishing in one highly open media.
During routine backwashing, the FilterSilk™ stays inside the Hydro Vortex™ while water moves through the media and loosened material is discharged from the filter.
No heavy bags of biological media to remove for routine cleaning.
Routine Maintenance vs. Waiting for a Major Cleaning
A waterfall filter doesn’t suddenly become dirty once a year. Material accumulates gradually whenever the water feature is operating.
That’s why the Hydro Vortex™ was designed to make routine cleaning simple enough to perform whenever the filter needs it.
Every Hydro Vortex™ includes a bottom drain, allowing accumulated material to be discharged from the settling chamber without removing the Hydro FilterSilk™.
Add the optional HydroFlush™ Backwash System, and the water feature’s existing pump is used to reverse the flow through the FilterSilk™ and help flush accumulated material from the filter.
Turn two valves. Backwash. Done.
No filter pads to remove. No media bags to lift. No separate blower required.
Compare the Difference
Waterfall filters may look similar from the outside, but their internal design can make a significant difference in how they are maintained.
Here’s how conventional pad-and-media waterfall filters compare with Hydro Vortex™ waterfall filters:
Feature
Conventional Pad & Media Filter
Hydro Vortex™
Fine Water Polishing
Filter pads
Hydro FilterSilk™
Biological Filtration
Pads and bagged media
Hydro FilterSilk™
Settling Chamber
Not included
Vortex settling chamber
Bottom Drain
Not included
Standard
Routine Backwashing
Not available
Designed for routine backwashing
Remove Filter Pads for Cleaning
Requires removal
No filter pads
Remove Bagged Biological Media for Cleaning
Requires removal
No bagged media
Filter Pad Replacement
Requires replacement
No filter pads
Bagged Biological Media Replacement
Requires replacement
No bagged media
Pump-Powered Backwashing
No
Optional HydroFlush™ System
How to Clean
Remove bio-media, rinse & reinstall bio-media
Backwash with Hydro FilterSilk™ in place
Ask One Question Before You Buy a Waterfall Filter
How Do I Clean It?
A waterfall filter may be installed once. You’ll live with the cleaning process for years.
