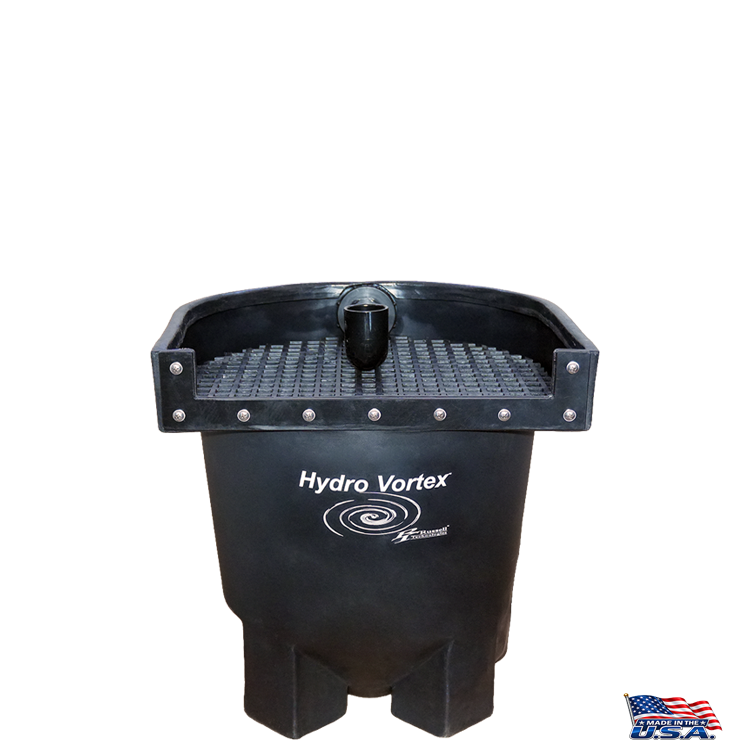

Ahi Hydro Vortex™ 16" Waterfall Filter
Ahi Hydro Vortex™ 16" Waterfall Filter
Easy-to-Clean Biological Filtration for Ponds & Pondless Waterfalls
The Ahi Hydro Vortex™ combines a 16" waterfall opening with vortex separation, biological filtration and fine water polishing in one compact, easy-to-clean waterfall filter.
Unlike conventional waterfall filters that may require removing and cleaning filter pads, the patented Hydro Vortex™ design can be backwashed without removing the Hydro FilterSilk™ media. That means less time cleaning your filter and more time enjoying your pond or pondless waterfall.
Proudly Made in the USA
Why Choose the Ahi Hydro Vortex™?
- Easy to clean — can be cleaned in as little as 2 minutes
- No filter pads to remove and clean
- No media replacement required — 1.85 cu. ft. of Hydro FilterSilk™ included
- Vortex solids separation helps settle heavier debris before the biological media
- Fine water polishing with Hydro FilterSilk™ media
- Biological filtration supports cleaner, healthier water
- Built-in settling cone and bottom drain make captured debris easy to remove
- 16" waterfall opening creates the waterfall while concealing the filter in the landscape
- Drain kit included
- Heavy-duty rotational-molded HDPE construction
- 316 stainless steel liner-flange hardware
- Can be installed in multiples for wider waterfalls, greater flow and additional filtration
Ahi Hydro Vortex™ Specifications
Pond Capacity: Up to 1,500 gallons
Maximum Flow: 3,000 GPH (50 GPM)
Waterfall Opening: 16" wide
Dimensions: 21¾" H × 19¾" W × 19¼" D
Filter Media: 1.85 cu. ft. Hydro FilterSilk™
Total Specific Surface Area: 677 sq. ft.
Ammonia Metabolization: Up to 13,540 mg per 24 hours
Supported Fish Weight: Up to 446.82 grams in 1,500 gallons
Inlet: One 1½" female threaded inlet
Drain: One 1½" female threaded backwash drain outlet
Construction: Heavy-duty rotational-molded HDPE
Hardware: 316 stainless steel liner-flange hardware
Three Stages of Filtration in One Waterfall Filter
1. Vortex Separation
Incoming water enters the lower vortex chamber, where heavier debris can settle into the cone-shaped bottom for removal through the drain.
2. Biological Filtration
Water then passes upward through the Hydro FilterSilk™ media, providing a large surface area for beneficial bacteria.
3. Water Polishing
The Hydro FilterSilk™ media also captures fine suspended particles to help produce cleaner, clearer water before it returns to the pond or stream through the waterfall opening.

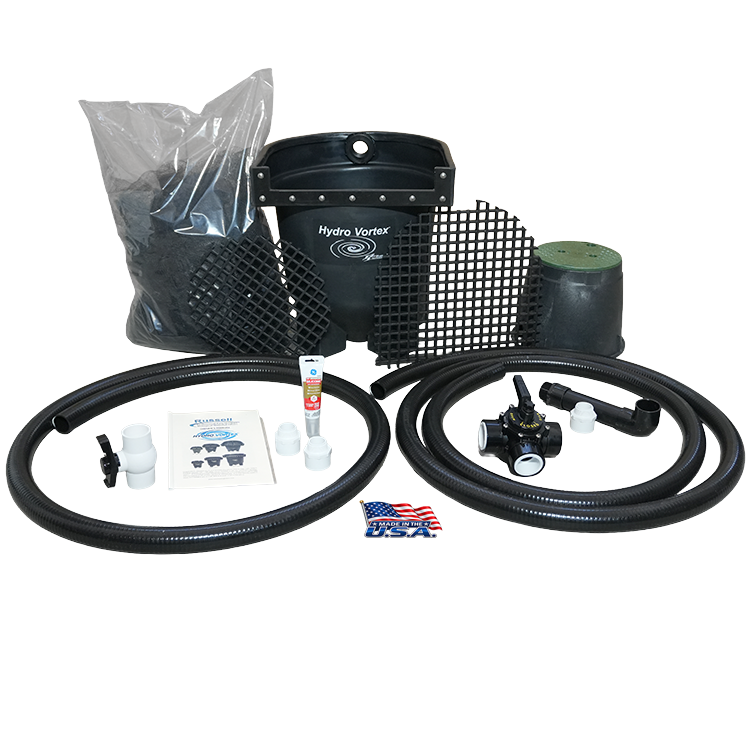

Everything You Need Is Included
The Ahi Hydro Vortex™ includes:
- 1.85 cu. ft. Hydro FilterSilk™ filter media
- Lower diffuser grate
- Upper diffuser grate
- Liner gasket flange
- 316 stainless steel flange hardware
- 10' of 1½" heavy-duty flexible PVC drain pipe
- 1½" drain valve
- Two 1½" PVC male pipe adapters
- Fish-safe 100% silicone sealant
No additional filter media is required.
Easy Backwashing — No Disassembly Required
The Hydro Vortex™ is designed so routine cleaning does not require taking the filter apart or removing the biological media. Captured debris can be flushed from the bottom of the settling cone, while the Hydro FilterSilk™ media can be backwashed inside the filter.
No blower or separate air pump is required for backwashing.

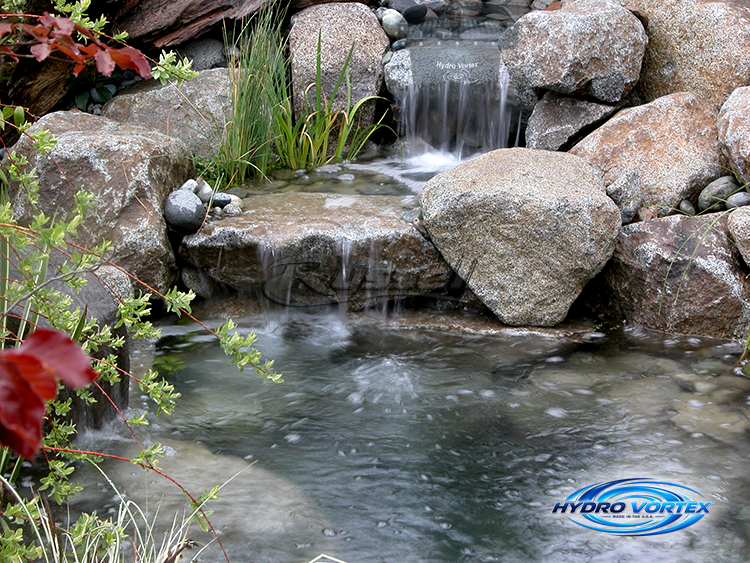

Designed to Disappear Into the Landscape
The liner attaches directly to the face of the Hydro Vortex™, allowing rocks and waterfall boulders to be positioned around the waterfall opening. Once landscaped, the filter becomes virtually invisible — leaving the waterfall as the focal point.
U.S. Patent Nos. 7,425,268 B2 and 7,731,841 B1
Easy to Clean - Completely Backwashable
No Dismantling Required for Cleaning
Highly Efficient Small Waterfall Filter, Easy to Clean
Completely Backwashable
- Made in the USA
- Can be cleaned in as little as 2 minutes
- Disassembly NOT required for cleaning as with other small waterfall filters
- Requires less installation time than other small waterfall filters
- Installs with only a Phillips screw driver - no special tools required
- Becomes virtually invisible in the landscape
- Long lasting components
- Unsurpassed purchase value - Drain kit included and all bio media included - no additional media required
- Lower cost of ownership - does not require media replacement like pond filters that use filter pads
- Unique Hydro FilterSilk™ media polishes the water far superior to filter pads and other filter media
- Lets you spend more time enjoying your pond or pondless waterfall and less time cleaning it!
Create beautiful water garden ponds, hybrid ponds, and crossover ponds with the easy to clean Ahi Hydro™ Vortex small waterfall filter. You can also construct amazing pondless waterfalls and pondless streams with this superior small waterfall filter. No other small waterfall filter on the market can compare to the ease of cleaning, the high surface area bio reaction, and superior water polishing of the Ahi Hydro Vortex™ small waterfall filter.
The patented Ahi Hydro Vortex™ small waterfall filter is easy to clean and completely backflushable. Backflushing your small waterfall filter keeps it performing at peak efficiency all year round which results in a much cleaner pond and a healthier ecosystem. This backwashable small waterfall filter keeps all types of ponds and pondless waterfalls clean and healthy. The Ahi Hydro Vortex™ small waterfall filter features superior water polishing and has the highest SSA in its class.
The Ahi Hydro Vortex™ small waterfall filter is the professional’s choice for its superior strength and durability. It is the DIYer's choice for its ease of installation. It is the owner’s choice for its ease of cleaning. The Ahi Hydro Vortex™ small waterfall filter is the most efficient small waterfall filter in its class.
Backwashing the Ahi Hydro Vortex™ Small Waterfall Filter
Hydro Vortex™ waterfall filters combine high surface area media, a vortex solids separator, and settling cone with a bottom drain for complete and efficient backwashing. Hydro Vortex™ waterfall filters do not require blowers or air pumps for backwashing.
The Ahi Hydro Vortex™ small waterfall filter is the smallest version of the industry-leading Patented Hydro Vortex™ series of completely backwashable biological waterfall filters. Invented by John Russell, a Hydro Vortex™ small waterfall filter is cleaned simply by opening its included drain valve and reversing water flow through the filter. This can be done either manually or mechanically with our HydroFlush™ Backwash System.
The HydroFlush™ option uses your existing pump and the included 3-way valve to reverse water flow through the filter. Cleaning an Ahi Hydro Vortex™ filter with the HydroFlush™ system is as easy as turning two valves!
The dirty water exiting the filter's drain pipe is loaded with nutrients! Use this backwash water to organically fertilize your landscape and gardens.
Hydro Vortex™ waterfall filters are designed for periodic gentle back-flushing of fish waste, mulm and detritus instead of the massive disruptive heavy annual pressure washer cleaning required for typical "Pad-&-Media-Bag" type box waterfall pond filters. Don’t be misled by the claims that say biological filters only need "annual cleaning" – the health of your fish may be at stake. All small waterfall filters, no matter what type or brand, would benefit from periodic rinsing of fish waste, mulm, and detritus - but only Hydro Vortex™ filters are backwashable.
Commonplace “Pad-&-Media-Bag” type pond filters are not designed with bottom clean out drains for ease of cleaning and routine gentle back-flushing. Soiled pond filters can cause poor water quality and can encourage algae growth and fish disease.
Biological waterfall filters – of any kind or brand – that are not periodically back-flushed, will eventually plug with fish waste, mulm and detritus (the build-up of fish and bacterial waste that looks like brown goop).
If the fish waste, mulm and detritus isn’t periodically back-flushed it can clog the filter media – no matter what type. Clogged filter media can cause the water to start “channeling” around the filter media within the filter. This means that water is finding a path of least resistance around the clogged media.
Water that channels around the filter media doesn’t get filtered. Water passing around the media through channels causes other areas within the filter to have stagnant, non-moving, oxygen-deprived water.
Areas within the filter that don’t pass oxygenated water become anaerobic (oxygen deprived) and encourage pathogenic species of bacteria like Aeromonas and Pseudomonas to proliferate in the filter and eventually in the pond. This can result in sick, diseased, and/or dying fish.
This is why fish disease is relatively high in typical water garden ponds compared to traditional koi ponds. Koi pond filters are back-flushable, typical "Pad-&-Media-Bag" style water garden filters are not. All Hydro Vortex™ waterfall pond filters come standard with a bottom drain for backwashing and easy water changes.
Compare Cleaning an Ahi Hydro Vortex™ Small Waterfall Filter
with Cleaning Commonplace Waterfall Filter Boxes
Ordinary commonplace small waterfall filters use filter pads inside them. They also require you to purchase additional media such as lava rock to aid in filtration and to hold the filter pads in place. When researching small waterfall filters - take note of what type of media comes with it - and if you're required to purchase additional media.
Just look at how you will have to clean the filter pads! You will have to pull them out of the filter and use high pressure water to clean them. They will be heavy and very smelly! But first you will have to remove the even heavier dirty bags of lava rock! Compare this to the ease of cleaning the Ahi Hydro Vortex Small Waterfall Filter!
Ahi Hydro Vortex™ Small Waterfall Filters
Let You Build Beautiful Water Garden Ponds
That Are Easy to Clean
An Easy to Clean Ahi Hydro Vortex™ small waterfall filter helps you build beautiful water garden ponds and waterfalls like the one shown in this photo that was built by a contractor in California for a Home Show using an Ahi Series Water Garden Pond Kit. The Ahi is suitable for ponds up to 1,000 gallons in size.
Ahi Hydro Vortex™ Small Pond Filters
Let You Build Beautiful Hybrid Ponds
That Are Easy to Clean
An Easy to Clean Ahi Hydro Vortex™ small waterfall filter helps you build beautiful hybrid ponds like shown in this photo. A hybrid pond is a cross between a koi pond and a water garden pond and can only be built using a backwashable waterfall filter. This hybrid pond was built using an Ahi Series Hybrid Pond Kit.
Ahi Hydro Vortex™ Small Waterfall Filters
Let You Build Stunning Pondless Waterfalls and Streams
That Are Easy to Clean
An Easy to Clean Ahi Hydro Vortex™ small waterfall filter lets you build amazing pondless waterfalls like shown in this photo. This pondless waterfall was built using an Ahi Series Ultimate Pondless Waterfall Kit.
Anyone can build professional – and natural looking waterfalls that are EASY TO CLEAN with an Ahi Hydro Vortex™ small waterfall filter.
Ahi Hydro Vortex™ Small Waterfall Filters are the
EASIEST TO CLEAN and Most Efficient Small Waterfall Filters Available …
Period
The TRUTH About "Annually Cleaned" Waterfall Filters
Common Waterfall Filter Boxes
with Filter Pads and Media Nets
Must be Dismantled BY HAND
for Annual Cleaning!
Why is Keeping a Waterfall Filter Clean So Important?
A waterfall filter is just that …. a filter.
(Roll your mouse over, or click this photo)
Think about filters for a moment:
Any type of filter, whether it be for liquids or gasses performs at its peak efficiency when kept clean – waterfall filters are no different. What would happen to your clothes if you didn’t routinely clean the dryer’s lint trap? What would happen to your engine if you didn’t change the oil filter? What would the swimming pool look (or smell) like if you cleaned the pool filter once per year? How would your water or coffee taste if you used the same filter for an entire year?
Everyone knows that filters either need to be kept clean or replaced to work effectively – pure and simple. You should RUN – not walk – away from any typical bio fall type waterfall filter that boasts that it only requires "annual cleaning". Let us explain.
So what collects in a waterfall filter anyway? The answer is fish waste, mulm and detritus (waste produced by bacterial colonies), small organic particles, algae, dissolved organic matter, and whatever passes through the pond skimmer or other pre-filter. All this “stuff” is commonly referred to as “sludge”.
Take a good look at this photo of the inside of a actual Aquascape Biofalls waterfall filter. This is sludge. The filter pads and media nets filled with lava rock are completely saturated with sludge.
When sludge is allowed to build up inside a typical bio fall type waterfall filter, the filter media becomes clogged and water will channel around it. Water channeling around the filter media is no longer being filtered. If a filter no longer filters …. then what good is it?
Once the pond filter media is saturated as seen in this photo, the sludge breaks off and finds its way to the bottom of your pond or pondless waterfall where it adversely affects water quality and dramatically promotes algae growth. Additionally, areas within a sludge filled waterfall filter that no longer have water passing through them become stagnant and oxygen-deprived.
Pathogenic species of bacteria such as Aeromonas and Pseudomonas proliferate in oxygen-deprived pond filter media and eventually pass into the pond. These pathogenic bacteria can attack your fish causing ulcers, open sores, mouth rot, fin rot, disease, and death.
This is why backwashing your pond filter
is so important!!!!
Don’t be misled by claims that the typical biological bio fall type waterfall filter only requires annual cleaning. The health of your fish may be at stake, as well as the appearance of your pond.
Think about “annually cleaning” a waterfall filter for a moment. Can it be done? Yes. Should it be done? Heck NO!!! You could mow your lawn once a year. Would you do it? Heck NO!!! Your neighbors wouldn’t appreciate your unsightly lawn for 51 weeks per year. It will be a huge time consuming and difficult chore when you do decide to mow it!
What would happen if you “annually” flushed your toilet? The conventional bio fall type waterfall filter that boasts “annual cleaning” is not providing you with the most accurate information.
A saturated waterfall filter encourages excessive algae growth as well as Aeromonas and Pseudomonas pathogenic bacteria proliferation. The algae is extremely ugly, and the pathogenic bacteria are a real danger to your koi and pond fish.
The Problems with Typical Conventional Waterfall Filters
With over 25 years’ experience installing, servicing and seeing the problems with virtually every brand of waterfall filter, company CEO, John Russell invented and patented the Hydro Vortex™ professional backwashable waterfall filter.
His goal: to resolve these common problems with unique design features, efficient function, and ease of cleaning in mind. John studied every waterfall filter available and compared them to koi pond filters - where koi and fish health is the primary concern. He discovered that all koi pond filters have the ability to be periodically backwashed to remove the unwanted fish waste, detritus, and mulm. There wasn’t a waterfall filter, or pondless waterfall filter that had this ability, and as a result, many pond and pondless waterfall owners were experiencing problems with fish health and excessive algae growth.
The Discovery:
Conventional Bio Fall Type Waterfall Filters
Utilize Media Nets Filled With Lava Rock
As Half Of Its Bio Media
Media nets filled with lava rock or other bio media can only be cleaned by removing them from the filter by hand and rinsing them with high pressure water.
Typical Conventional Bio Fall Type Waterfall Filters
Utilize Filter Pads As Half Of Its Bio Media
Filter pads can only be cleaned by removing them from the filter by hand
and rinsing them with high pressure water. (Roll your mouse over the photo to the right)
High water pressure cleaning harms the beneficial bacteria that was living on the filter pads, thus requiring completely starting the bio filter ecosystem again from scratch after every cleaning. This is a big reason why the manufacturers of these types of the conventional bio fall waterfall filters state the their filters only require “annual cleaning” as cleaning the filter pads with high pressure water – the only way possible – destroys the ecosystem of the bio filter.
The typical conventional waterfall filter doesn’t possess a vortex water motion or settlement chamber inside the filter body – there is no pre-bio stage solids separation as with the Hydro Vortex™. All the particulates that can get past a pond skimmer - fish waste, mulm, and detritus are forced to collect on the filter pads and media nets.
Once the bio media is saturated, the water flow channels around the filter media and is returned to the pond unfiltered. Additionally, the filter pads, lava rock, and other common types of filter media inside typical conventional waterfall filters are too dense to rinse with low pressure water. The filter pads, lava rock, or other bio media must be removed from the typical waterfall filter for hand cleaning.
This is why the ecosystem crashes after an annual pond cleaning. High pressure cleaning eliminates of all the good bacteria while you are trying to get rid of the bad. Look at the closeup photos on the left: how efficient do the filter pad and lava rock look to you? Does leaving this inside your filter for an entire year seem right to you? We didn't think so!
Another thing about leaving this inside your filter for an entire year: It's obvious that these filter pads and lava rock can't hold onto any more mulm. Where do you think it goes? Yup, you guessed it .... right back into your pond or pondless waterfall reservoir basin. Guess what it will then do. You're getting it now! Grow algae and cause fish disease!
All typical bio fall type waterfall filters can only be cleaned by hand! When doing your research on which waterfall filter to purchase – you need to ALWAYS ASK:
How Do I Clean
This Waterfall Filter?
There are many manufacturers of these types of typical bio fall waterfall filters: Aquascape, Easy Pro, Atlantic, Pond Builder, Pro Line, Savio, and others. They are commonly referred to as bio falls, puri falls, aqua falls, fast falls, filter falls, cascade falls, elite falls, and many other names.
It doesn’t matter the manufacturer – they may look different on the outside, but inside – where it really matters – they are all the same! Filter pads and media nets are not backwashable, and must be disassembled for cleaning.
This is a copy of anactual manufacturer's owner's manual - they are making our point for us.
As the old sayings go: "You Get What You Pay For" and "Buyer Beware!"
You can do an internet search and find a ton of information about how to clean a typical bio fall type waterfall filter. They all talk about cleaning the filter pads and the lava rock contained in the media nets once per year …. but what they don’t show is …. what you’re actually cleaning – or how you will be doing it!
This is How to Clean a Typcial Bio Fall Type Waterfall Filter
The first step is to drain the conventional bio fall type waterfall filter
Most likely the filter doesn’t have a drain unless you paid extra for a drain kit - so you’ll have to disconnect the pump and have the dirty filter water backflow into the pond skimmer and pond. Careful, it will be under pressure and can get all over you. Or purchase a second pump and hose to pump it out. Again, additional costs to the original purchase price!
The second step is to remove the media nets
These are usually filled with lava rock, but they can also be filled with bio balls or other form of bio media. Lava rock is the most commonly used media in these nets because the lava rock is heavy and holds the filter pads down inside the conventional bio fall type waterfall filter.
These saturated media nets can be very heavy – so be careful lifting them out. Small waterfall filters may have only one such media net, but the average size filter contain two or three. Larger waterfall filters contain six or more media nets.
This is what you’ll be cleaning from the media nets. As stated earlier, this is “sludge” consisting of all sorts of smelly decaying things. Make sure to wear protective clothing and gloves when handling saturated bio media. Infections are common problems associated with cleaning a conventional bio fall type waterfall filter.
Look at this lava rock. It has been in this conventional bio fall type waterfall filter for an entire year!
In the words of Howard Hughes: “Does that look clean to you?”. The pores in the lava are completely filled with sludge. The only way to clean this is with high pressure washing. It is widely understood that using high pressure water to clean bio media destroys the beneficial bacteria living on it. This destroys the pond filter’s ability to perform its primary job of bio reaction.
The next step is to remove the filter pads
They too can be heavy. The typical conventional bio fall type waterfall filter contains two to three of these saturated filter pads. Again, it is recommended to use long sleeve rubber gloves and eye protection when handling sludge saturated filter pads.
These filter pads have been in this conventional bio fall type waterfall filter for an entire year! How effective do YOU think they can be when they’re clearly saturated with sludge?
Filter pads saturated with sludge promote harmful pathogenic bacteria to proliferate and provide a huge food source for algae!
No "ifs, ands, or buts"! We've been in this industry for a long time and know what we're talking about. How do you think we get all these photos? Our service crews are booked solid from people paying us their hard-earned money to clean their ponds and filters! We photograph the jobs. If only they had all this information BEFORE they bought one of these types of filters - or hired a contractor to install one!
The next step is to high pressure rinse the filter pads and lava rock
This can get very messy! For your safety make sure to wear rubber rain gear, long sleeve rubber gloves, and protective eye-wear. Make sure to keep your mouth closed!
When high pressure rinsing the completely sludge-saturated filter pads - make sure you use enough water pressure to clean the pad, but not so much that you disintegrate it! Filter pads are expensive to replace!
The Next Step is to Clean the Inside of the Waterfall Filter Itself
The typical conventional bio fall type waterfall filter does not have a drain which makes this process very difficult. Wipe and rinse the sludge and muck from the walls of the filter and pump, or shop-vac out the slurry. If you paid extra for a drain, then rinse the sludge and muck out the drain. You'll also have to shop-vac the remaining slurry that is below the drain (since the drain isn’t really a drain but a reversed inlet on the side of the filter – and above the bottom).
Any guesses as to what this smells like?
The next step is to catch and relocate all your fish
then drain and clean the pond bottom
This is the costliest part of the “annual clean-out” or “spring-cleaning”. You’ll need a net to catch the fish, a tank large enough to hold them all, a net large enough to cover the tank so your fish don’t jump out, and an aeration system for the tank to provide oxygen to your fish.
You also need a dirty water trash pump and enough hose to discharge the dirty water somewhere – make sure to not flood a neighbor’s yard! Also, in most communities it is unlawful to dump this dirty water into the storm drains. Check with your local Authorities first - or you could be subject to a large fine.
You’ll be pumping out ALL the pond water, pressure washing the entire pond, waterfalls, stream (if you have one), and then re-filling the entire pond with fresh water. Depending on the size of your pond, the water bill can be quite high. Or, you can pay a professional who already owns the required equipment a lot of money to do it for you. You must factor in this large annual cost when you’re contemplating which waterfall filter to purchase.
All the additional costs can run you several hundreds of dollars. Oh by the way, if you don't own a pressure washer - add the rental cost to the price of the typical conventional bio fall type waterfall filter. After adding all these additional costs to the price of a typical conventional bio fall type waterfall filter, that cheap price isn't looking so cheap now is it? Again, "You get what you pay for!" Are you beginning to understand how and why a Hydro Vortex™ waterfall filter lowers your cost of ownership?
A typical conventional bio fall waterfall filter - be it bio falls, aqua falls, filter falls, or the many other terms used to describe these types of the hard to clean waterfall filters ALL state they only require "annual-cleaning". These waterfall filters get clogged with sludge and then pass sludge to the pond where it settles to the bottom. This requires the pond to be completely drained and cleaned every year at a large annual expense. Ponds with these types of bio filters experience excessive algae growth, become unsightly very quickly, and create non-ideal living conditions for koi, pond fish, and other aquatic life.
If "a picture is worth a thousand words", then how many words do all our photos tell you? You can CLEARLY see that these photos are NOT doctored in any way.
As mentioned earlier, our service division gets booked months in advance to clean ponds and pondless waterfalls that are filtered with these types of waterfall filters. This is also why we get booked for so many Ectomies!
What are People Doing with their "Annually Cleaned"
Conventional Bio Fall Type Waterfall Filter?
People are ripping them out in record numbers all across the country!
This process is known as a “Filter-Ectomy”. A Filter-Ectomy is the replacement of the conventional non-backwashable bio fall type waterfall filter with a completely backflushable Hydro Vortex™ waterfall filter.
When people get tired of their hard to clean conventional bio fall type waterfall filter – the algae, sick fish, and headaches associated with them – they replace them with Hydro Vortex™. We get lots of plastic to recycle every year!
If you’re considering purchasing a conventional bio fall type typical waterfall filter – no matter the brand – you have to add the cost of annual cleaning and the eventual filter-ectomy to the price of that filter.
If you purchase a waterfall filter solely on price alone, you will end up paying a lot more in the future. The conventional bio fall type waterfall filter has a much higher cost of ownership than Hydro Vortex™ backwashable waterfall filter.
Do Yourself a Favor,
Pay a Little More for a Hydro Vortex™ Waterfall Filter
So You Can SAVE Thousands of Dollars Over Time.
The solution to the conventional "annually cleaned" waterfall filter is the patented backwashable Hydro Vortex™. With the patented Hydro Vortex™ fully backwashable waterfall filter, you can routinely rinse the filter free of mulm and detritus before it can become sludge. Keeping the filter clean on a routine basis will prevent it from passing sludge to the pond so the pond will remain much more clean.
With a Hydro Vortex™ backwashable waterfall filter, you can routinely clean the pond bottom with a garden hose leaving the pond full of water and your fish swimming around in it. Simply use a garden hose to “fluff” any debris that has settled to the pond bottom. The water will temporarily cloud up. Your pump will pass the cloudy water to the Hydro Vortex™ filter where the filter’s vortex and the Hydro FilterSilk™ media will clean the water. Then simply perform a backwash of the Hydro Vortex™ filter. You can have a clean pond all year round without having to catch and remove your fish, drain the pond, or disassemble the filter for cleaning.
A clean pond is a healthy pond for your koi, pond fish, turtles, and the wildlife that visit the pond. In addition, a clean pond has much less algae than a dirty pond. It is just common sense.
The TRUTH About "Annually" Cleaned Waterfall Filters?"
They Get Replaced With .....
Patented Hydro Vortex™ Professional Backwashable Waterfall Filters …
Easy to Clean Waterfall Filters
Beautiful Waterfalls – Clean Water
